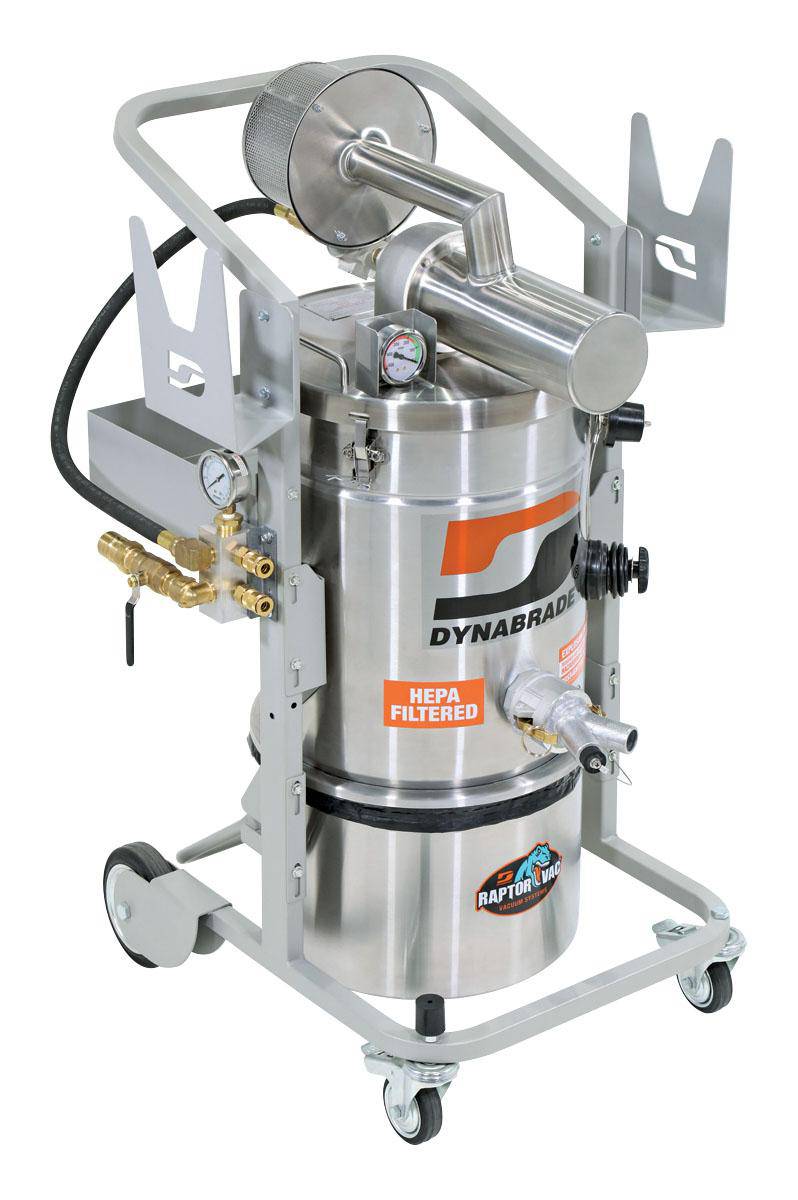

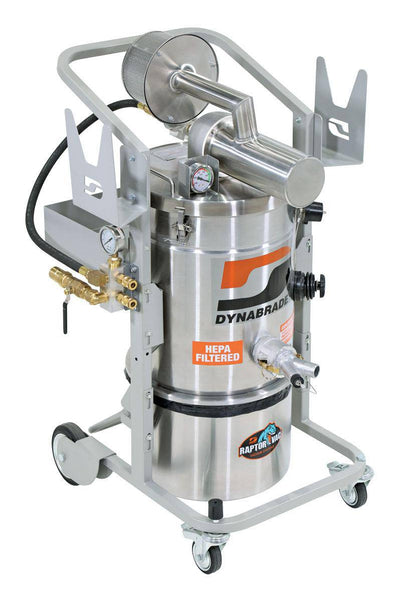

Dynabrade Raptor 61465 - Raptor Vacuum Air Powered Portable Vacuum System
Dynabrade Raptor 61465 - Raptor Vacuum Air Powered Portable Vacuum System - eGrimesDirect

Dynabrade Raptor 61465 - Raptor Vacuum Air Powered Portable Vacuum System

Dynabrade SKU: MA COL 61465
/

Sold in multiples of 1 (s)

Shipping calculated at checkout.


This product has a longer than usual lead time

Please contact our customer service team for more details
csr@eGrimesDirect.com

  • Secure payments
  • Raptor Vac Air Powered Portable Vacuum System
  • 5 lbs
  • (2.27 kg) into 6.25 Gal (24 L), Division 1, N
  • America
  • Pneumatic Portable Vacuum For use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
  • Collects maximum of 5 lbs
  • (2.27 kg) of dust
  • Designed for dry-only source capture, where fine dust must be recovered
  • Legally certified as explosion-proof and dust ignition-proof
  • Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron
  • Filter is located downstream of the motor
  • Manual Filter Shaker (MFS) system.
  • Stainless steel recovery tank (SAE 304)
  • Easy one-click detaching and connecting of tank
  • Unit is static-dissipating (kit included) and conductive
  • Aerosol leak tested for quality assurance
  • Equipped with easy-glide cart and tool basket
  • Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cSt
  • 96608 Conductive Cleaning Kit available separatelyVacuum for use in:
  • Group A:
  • atmospheres, containing acetylene
  • Group B:
  • atmospheres, containing flammable gas,
  • flammable liquid-produced vapor, or combustible
  • liquid-produced vapor mixed with air
  • Group C:
  • atmospheres containing flammable gas,
  • flammable liquid-produced vapor, or combustible
  • liquid-produced vapor mixed with air
  • Group D:
  • atmospheres, containing flammable gas, flammable
  • liquid-produced vapor, or combustible liquid-produced vapor
  • mixed with air that may burn or explode
  • Group E:
  • atmospheres, containing potentially combustible dusts,
  • including aluminum, magnesium, and their commercial alloys
  • Group F:
  • atmospheres, containing combustible carbonaceous
  • dusts, such as coal, carbon black, charcoal, coke dust
  • Group G:
  • atmospheres, containing wood and plastic dusts
  • Included:
  • - Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
  • - Y-Connector
  • - Two Composite Couplers
  • - Two Vacuum Hose Swivel Adapters
  • - Conductive Poly Liner
  • - 3/4 Inch x 25' (19 mm x 7.6 m) Conductive Air Line Supply

    • Product Information

    Brand Dynabrade
    Part # 61465
    Line Raptor
    Origin Country United States
    Product Type Collectors & Accessories
