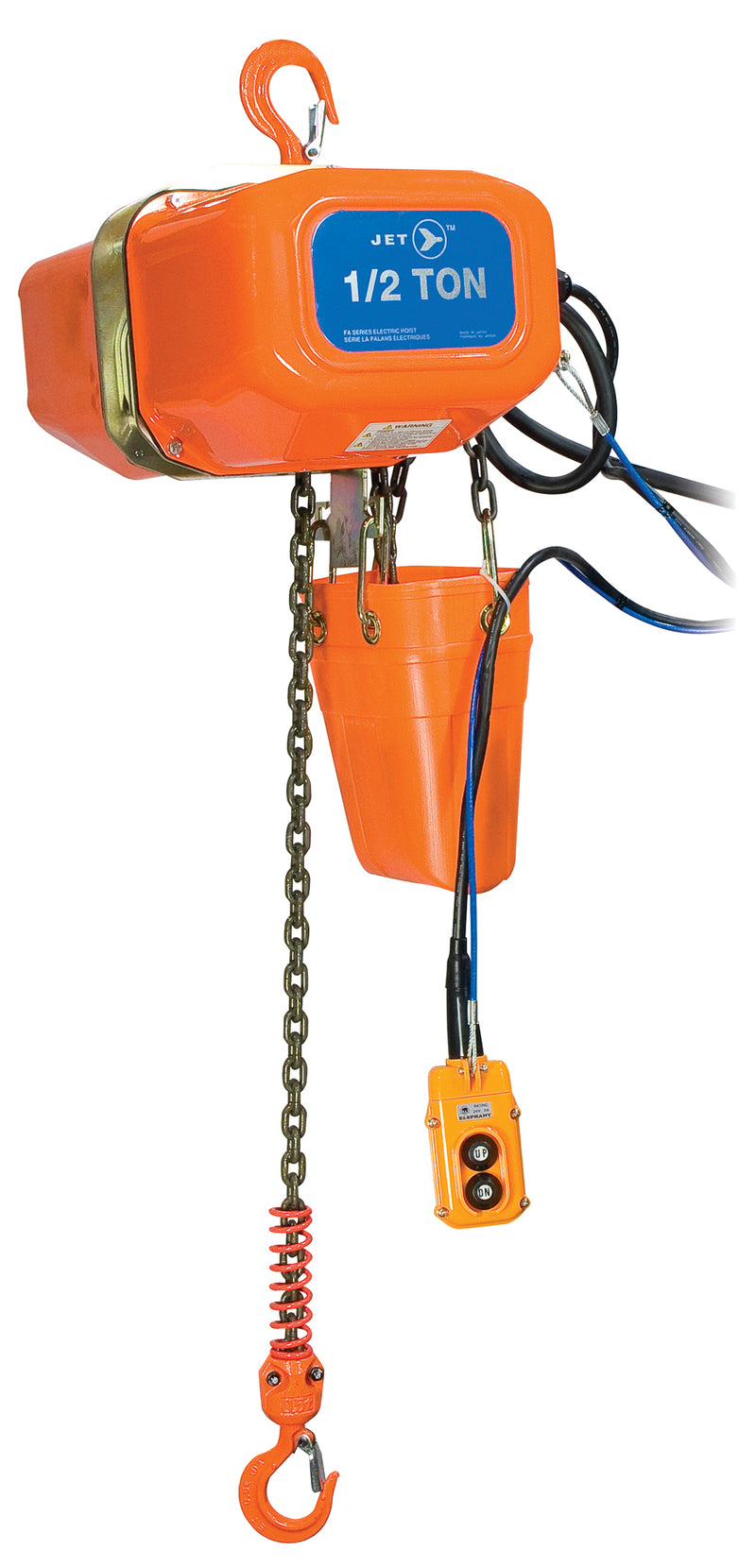

Jet FA-0.5S - 1/2 Ton 15' Lift 230/460V 3Ph Electric Chain Hoist Heavy Duty
Jet FA-0.5S - 1/2 Ton 15&

Jet FA-0.5S - 1/2 Ton 15' Lift 230/460V 3Ph Electric Chain Hoist Heavy Duty

Jet SKU: FM HST 107212
/

Sold in multiples of 1 (s)

Shipping calculated at checkout.


Usually ships in 5 days

  • Secure payments

1/2 Ton 15' Lift 230/460V 3PH Electric Chain Hoist - Heavy Duty

  • Available in single phase or three phase models and various voltages (specify when ordering)
  • 1/2 ton - 5 ton capacities
  • Chain is heat treated, case hardened low wear chain surpassing ISO Class T
  • All models complete with chain collector bucket
  • Reliable electro-magnetic DC brake engages automatically when power is cut off
  • Two button pendant control automatically returns to OFF mode when either button is released
  • 24 volt pendant control for operator safety in damp or humid conditions
  • Strain relief cable protects electrical connections
  • Top and bottom safety hooks designed to bend slowly to warn of overloads
  • Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
  • Gear train and electrical components completely sealed for use outdoors (cover recommended)
  • Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
  • Single phase hoists equipped with automatic overload protection preset to 110% of rated capacity
  • Three phase hoists feature reverse phase protection
  • Meets ASME B30.16, CSA, and OSHA standards

    • Product Information

    Brand Jet
    Part # 107212
    Product Type Chain Hoists

    Product Information

  • Rated Lifting Capacity : 1,100 lb
  • Standard Lift : 15'
  • Standard Chain Bucket : #2
  • Hoisting Speed : 28 FPM
  • Voltage : 230/460 V
  • Power Source : 3 ph
  • Head Room : 18.9 Inch
  • Motor Power : 1.2 HP
  • Duty Rating : 30 min
  • Power Cable Length : 16'
  • Number of Falls : 1
  • Amperes : 2.9 / 1.7
  • A: 6.34 Inch
  • B: 4.88 Inch
  • C: 8.82 Inch
  • D: 12.24 Inch
  • H: 18.90 Inch
  • K: 1.42 Inch
  • L: 1.30 Inch
  • M: 3.39 Inch
  • N: 0.94 Inch
  • O: 0.75 Inch
