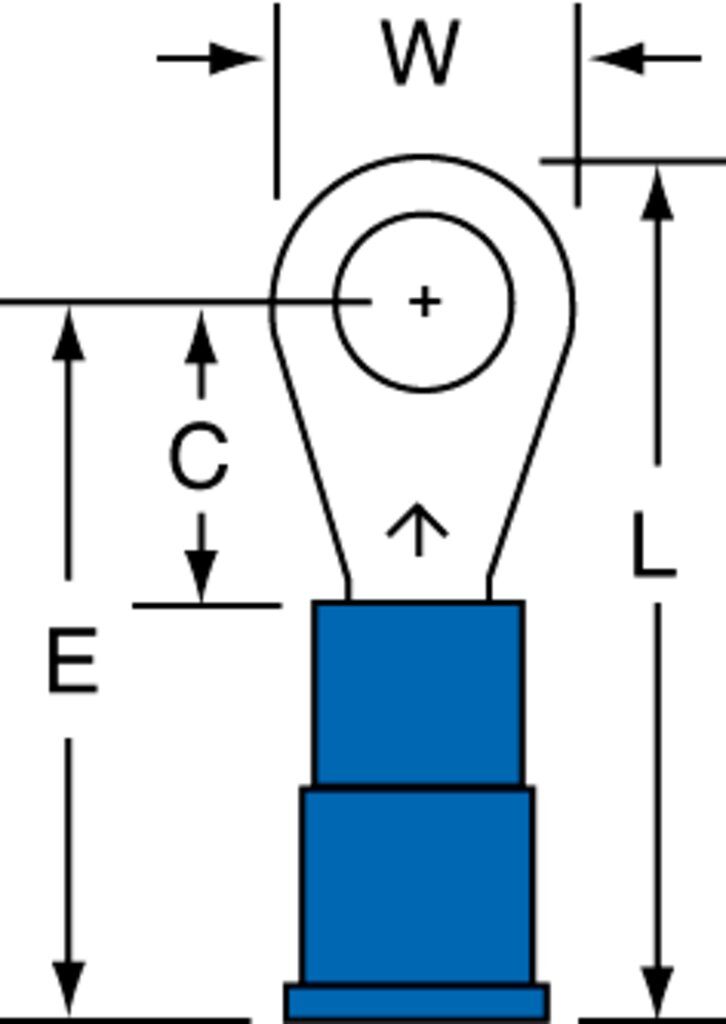

3M Scotchlok Ring Tongue Terminal, MV14-10R/LX, blue, vinyl insulated, stud size 10, 16-14 AWG

  • 3M Scotchlok Ring Tongue with vinyl insulation ensures an ideal fit while offering reliable and safe performance
  • The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius)
  • Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion
  • Available in both bottle and bulk packaging
  • 3M Scotchlok Ring Tongues are UL Recognized and CSA certified.

    • Product Information

    Brand 3M
    Part # 7000133328
    Line Scotchlok
    Origin Country USA

    Product Information

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Accommodates wire sizes 16 to 14 AWG
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • The safest and most reliable style of tongue -- it cannot be removed unless mounting screw is removed
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
    •
