3M 2PCID - Fire Barrier Cast-in-Device For Plastic Pipes 2 in 7100138821
3M 2PCID - Fire Barrier Cast-in-Device For Plastic Pipes 2 in 12 Per Case 7100138821 - eGrimesDirect

3M 2PCID - Fire Barrier Cast-in-Device For Plastic Pipes 2 in 7100138821

3M SKU: ES FSE 2PCID
/

Sold in multiples of 12 (s)

Shipping calculated at checkout.

Make To Order
Usually ships in 15 days

  • Secure payments

FB 2IN CAST-IN DEVICE 2PCID

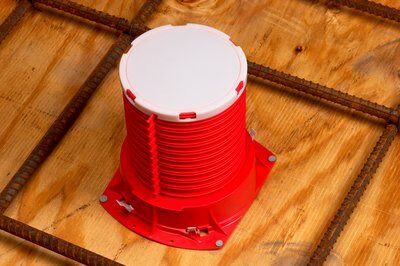

  • This 3M Fire Barrier Cast-In Device for Plastic Pipes 2PCID is an intumescent device that firestops 2 inch (50.8 mm) non-metallic penetrations through fire-rated concrete floor assemblies
  • It is installed by attaching directly to the form before a concrete slab is poured.

    • Product Information

    Brand 3M
    Part # 7100138821
    Diameter 2 Inch
    Fire Rating 3 Hour
    Origin Country USA
    Product Type Fire Barriers

    Product Information

  • Easily adjusted height accommodates concrete thickness from 2-1/two inches up to 8" (57.2 mm to 203.2 mm)
  • Firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479)
  • Installs securely by attaching directly to flooring deck
  • Meets UL Water Leakage Test, W Rating ? Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details)
  • Models for metallic (black cap) and non-metallic (white cap) penetrating items
  • Red colour easily identifiable as fire-rated device
  • Rugged one-piece design to withstand every-day bumps, kicks and hard knocks of the construction process
  • UL Classified for 2 and 3 hours of fire (F) rating, 1 and 3 hours of temperature (T) rating

    • Suggested Application

  • May be applied to two inches non-metallic pipe and HVAC line sets in drain, waste, suppy and vented or closed pipe systems
  • Commonly used to firestop ccPVC, PVC, RNC and CPVC pipes penetrating concrete floors with fire-ratings up to 3 hours
  • Use the appropriately-sized device as listed in system details (black-capped devices for metallic penetrations and white-capped devices for non-metallic penetrations)
