3M 4MCID - Fire Barrier Cast-in-Device For Metal Pipes (4 inch) 7100138823
3M 4MCID - Fire Barrier Cast-in-Device For Metal Pipes 4 in 7100138823 - eGrimesDirect

3M 4MCID - Fire Barrier Cast-in-Device For Metal Pipes (4 inch) 7100138823

3M SKU: ES FSE 4MCID
/

Sold in multiples of 6 (s)

Shipping calculated at checkout.

Standard
Usually ships in 6 days

  • Secure payments

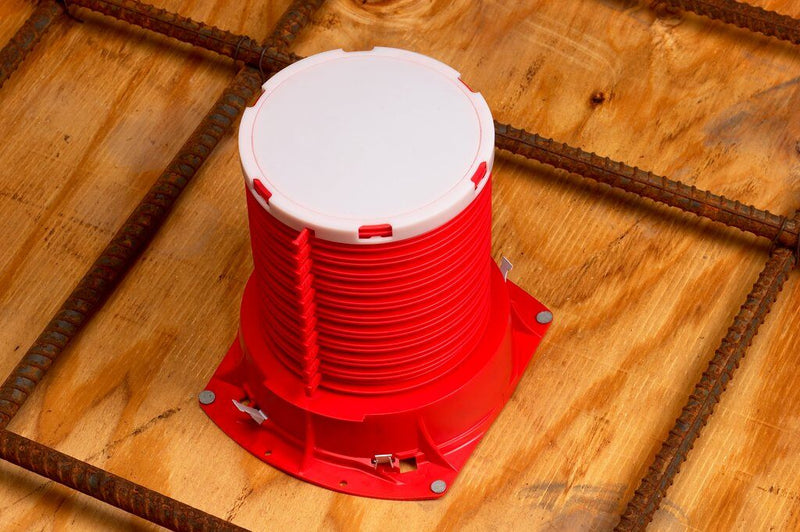

3M Fire Barrier Cast-in Device for Metal Pipes, 4MCID, 4 in (10.2 cm)

  • The 3M Fire Barrier Cast-in Device for Metal Pipes 4MCID is an intumescent device that firestops 4-inch (101.6 mm) metallic penetrations through fire-rated concrete floor assemblies
  • The device is installed by attaching directly to the form before a concrete slab is poured.

    • Product Information

    Brand 3M
    Part # 7100138823
    Color Red
    Fire Rating 3 Hour
    Origin Country USA
    Product Type Fire Barriers
    Size 4 Inch

    Product Information

  • Easily adjusted height accommodates concrete thickness from 2-1/2" up to 8" (57.2 mm to 203.2 mm)
  • Firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479)
  • Installs securely by attaching directly to flooring deck
  • Meets UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details)
  • Models for metallic (black cap) and non-metallic (white cap) penetrating items
  • Red colour easily identifiable as fire-rated device
  • Rugged one-piece design to withstand every-day bumps, kicks and hard knocks of the construction process
  • UL Classified for 2- and 3-hour fire (F) rating, 1- and 3-hour temperature (T) rating

    • Suggested Application

  • May be applied to 4 inch metallic pipes, single and bundled cables, insulated pipes and HVAC line sets penetrating concrete floors with fire-ratings up to 3 hours
  • Use the appropriately-sized device as listed in system details (black-capped devices for metallic penetrations and white-capped devices for non-metallic penetrations)
