3M Scotchlok 557-BOX - Electrical Insulation Displacement Connector 557 red pigtail 22-16 AWG 7100166937
3M Scotchlok 557-BOX - Electrical Insulation Displacement Connector 557 red pigtail 22-16 AWG 7100166937 - eGrimesDirect

3M Scotchlok 557-BOX - Electrical Insulation Displacement Connector 557 red pigtail 22-16 AWG 7100166937

3M SKU: EL ECO 557-BOX
/

Sold in multiples of 1 (s)

Shipping calculated at checkout.

Standard
Usually ships in 6 days

  • Secure payments

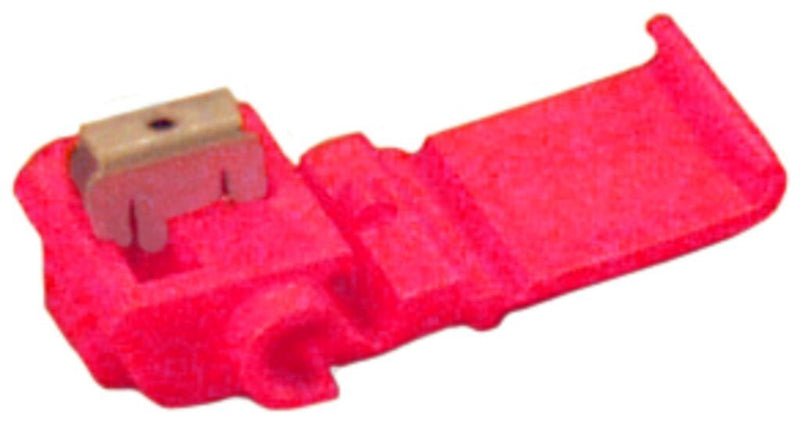

3M Scotchlok Electrical Insulation Displacement Connector, 557, red, pigtail, 22-16 AWG

  • 3M Scotchlok Electrical Insulation Displacement Connector electrically connects a (tap) wire end to a through (run) wire, while insulating the connection
  • This connector is greased and provides a moisture-resistant connection
  • It is also flame retardant and is designed for tape and parallel splicing
  • It features a maximum insulation O.D
  • diameter of 0.120 inches (3.05 mm) and an operating temperature of 221 degrees Fahrenheit (105 degrees Celsius)
  • The suggested application tool for the 3M Scotchlok Electrical Insulation Displacement Connector, 557, is 3M Scotchlok Crimping Tool, E-9BM.

    • Product Information

    Brand 3M
    Part # 7100166937
    Line Scotchlok
    Origin Country USA

    Product Information

  • Connects and insulates in one step
  • Designed for use with the 3M Scotchlok Crimping Tool, E-9BM
  • Flame retardant
  • Moisture resistant
  • Self-stripping
