3M Filtrete DP02DC-4-C - Allergen Defense Micro Allergen Deep Pleat Filter MPR 1000 20 Inch x 20 Inch x 4 Inch 7100134164

3M Filtrete DP02DC-4-C - Allergen Defense Micro Allergen Deep Pleat Filter MPR 1000 20 Inch x 20 Inch x 4 Inch 7100134164

3M SKU: HV FLT DP02DC-4-C
Price per Each
Regular price $40.41
Regular price Sale price $40.41
Save
/
Quantity 1 = 1 Each
Minimum order: 4 Each · Order in multiples of 4 · Minimum product total: 161.64 CAD

Sold in multiples of 4 Each(s)
Shipping calculated at checkout.

Standard
Usually ships in 6 days
  • Secure payments
Residential HVAC Filter | Filtrete Allergen Defense

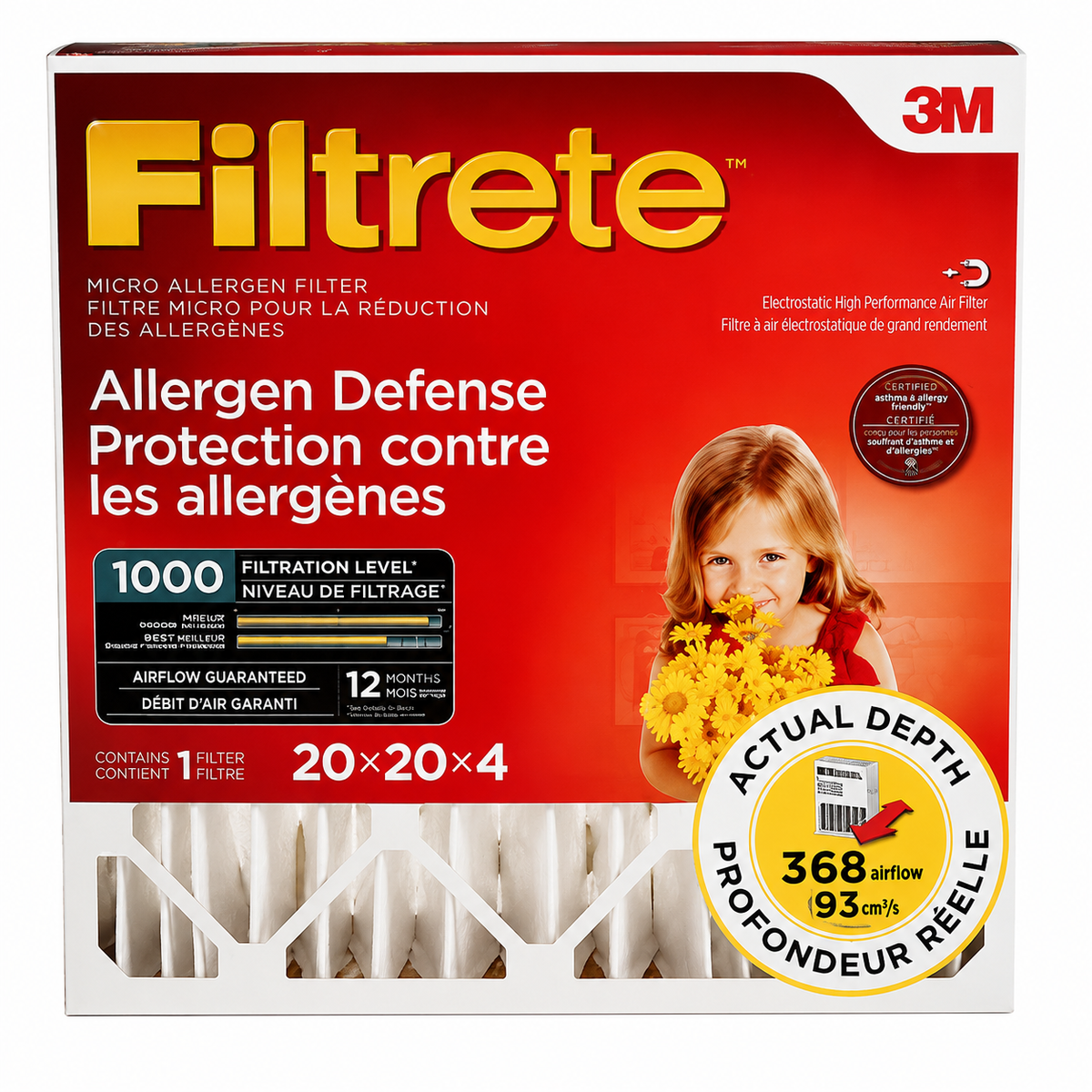

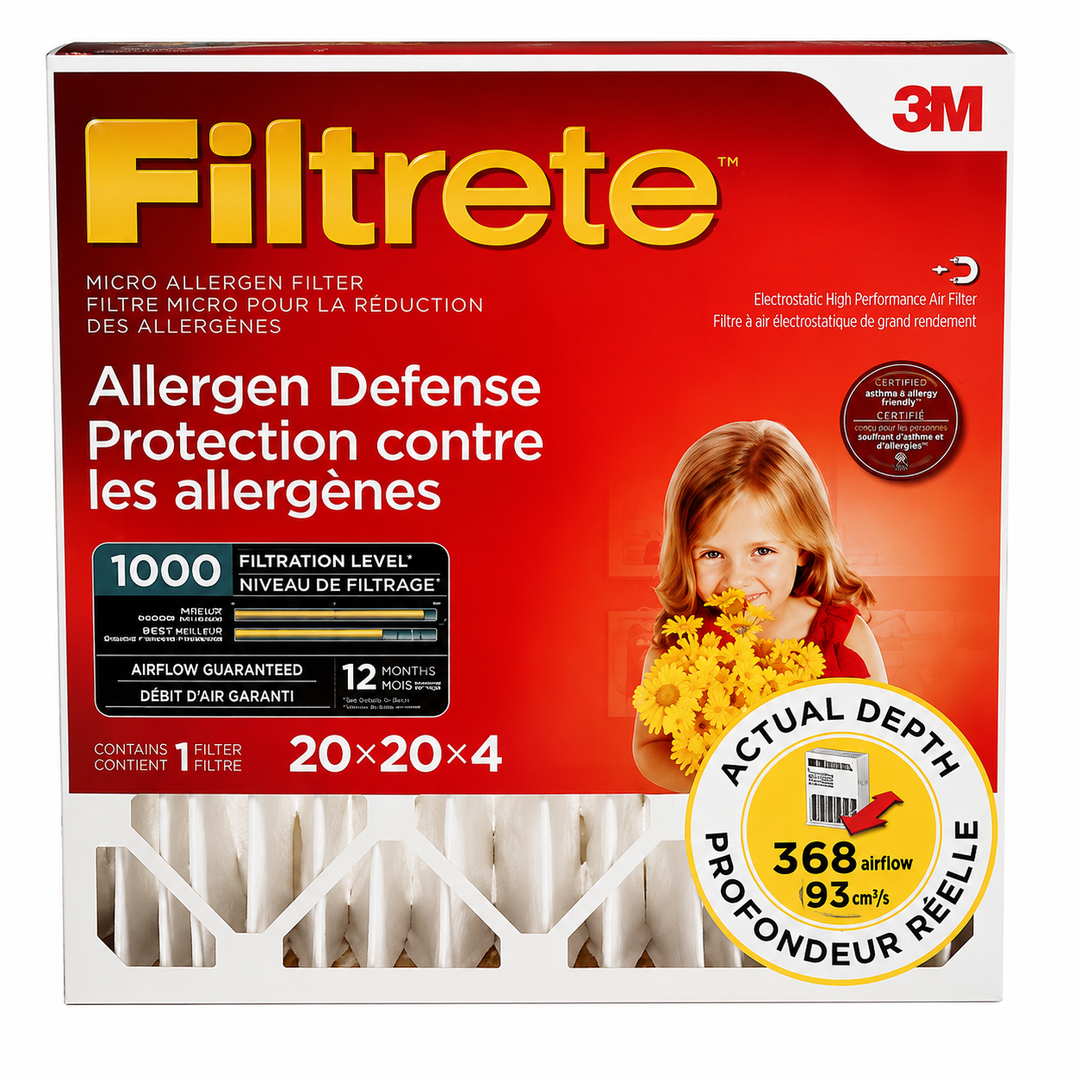

Filtrete™ Allergen Defense Micro Allergen Deep Pleat Filter, MPR 1000, 20 in x 20 in x 4 in, 4/Case

A deep-pleat electrostatic furnace filter designed to attract and capture airborne allergens and household particles throughout residential heating and cooling systems. This product is sold by the case, with 4 filters per case.

Performance rating
MPR 1000
Micro particle performance rating
Nominal size
20 x 20 x 4 in
50.8 x 50.8 x 10.16 cm
Filter life
Up to 12 months
Replace yearly under normal conditions
Selling unit
Case
4 filters per case

Cleaner air throughout your home

Filtrete™ Allergen Defense filters use electrostatic technology to attract and capture airborne particles as air moves through your central heating and cooling system.

The filter helps reduce airborne allergens and household particles in the air circulated through residential HVAC systems.

Deep-pleat construction

The 4 inch deep-pleat format provides more filter media than many standard 1 inch filters. This design supports efficient particle capture while fitting compatible 4 inch residential HVAC filter cabinets.

Always confirm that your furnace or air handler is designed for a 20 x 20 x 4 inch filter before ordering.

Particles the filter helps capture

The Filtrete™ Allergen Defense Micro Allergen Deep Pleat Filter is designed to attract and capture a range of common airborne particles, including:

Pet dander Smoke Household dust Pollen Mold spores Lint Smog particles Dust mite debris Cough and sneeze debris Bacteria Viruses

Benefits of a 4 inch deep filter

01

More filter media

Deep-pleat construction provides more filter surface area than many standard 1 inch furnace filters.

02

Longer replacement interval

The filter is designed to last up to 12 months under normal residential conditions.

03

Whole-home filtration

Installed in a central HVAC system, the filter helps treat air as it circulates through the home.

04

Residential application

Designed for residential heating and cooling systems using compatible 20 x 20 x 4 inch filter cabinets.

Before ordering

  1. Confirm that your HVAC system accepts a 20 x 20 x 4 inch nominal filter.
  2. Check the airflow direction arrow on the replacement filter and install it in the correct direction.
  3. Confirm that the filter cabinet has enough clearance for a 4 inch deep filter.
  4. Replace the filter according to system conditions, household air quality needs and the manufacturer's recommended schedule.

Installation and replacement guidance

01

Turn off the system

Switch off the furnace or air handler before removing the old filter.

02

Check airflow direction

Install the replacement filter with the airflow arrow pointing toward the furnace, air handler or return-side equipment.

03

Seat the filter properly

Make sure the filter is fully seated in the cabinet and that air cannot bypass the filter around the edges.

04

Replace as needed

Filtrete lists a service life of up to 12 months. Replace sooner if the filter becomes heavily loaded or airflow is reduced.

Important product information

This filter is intended for residential use only. It is a replacement HVAC filter and is not a standalone room air purifier or a substitute for professional HVAC maintenance.

Sold by the case only. Each case contains 4 filters.

Technical specifications and case ordering information
Product Filtrete™ Allergen Defense Micro Allergen Deep Pleat Filter
Filter category Allergen Defense
Microparticle Performance Rating MPR 1000
Nominal size 20 in x 20 in x 4 in
Metric size 50.8 cm x 50.8 cm x 10.16 cm
Overall length 20 in (50.8 cm)
Overall width 20 in (50.8 cm)
Overall thickness 4 in (10.16 cm)
Filter material Polyester
Filter type Electrostatic pleated
Filter life Up to 12 months
Package contents 1 filter per package
Case contents 4 filters per case
Selling unit Case only
Residential or commercial use Residential use only
Product colour Navy blue and purple, as listed by 3M
Brand Filtrete™
3M Catalogue Number DP02DC-4-C
3M Stock Number 7100134164
UPC, filter 00051111017425
UPC, shipper case 50051111017420
Country of origin Canada

Frequently asked questions

What size filter is this?

This is a 20 x 20 x 4 inch nominal-size furnace filter, also listed as 50.8 x 50.8 x 10.16 cm.

What is the MPR rating?

This Filtrete™ Allergen Defense filter carries a 1000 Microparticle Performance Rating, or MPR 1000.

How long does this filter last?

Filtrete lists this 4 inch deep-pleat filter as lasting up to 12 months. Actual replacement timing depends on household conditions, system operation, pets, smoke, construction dust and other airborne particles.

What particles does this filter capture?

The filter is designed to attract and capture particles such as pet dander, smoke, household dust, pollen, mold spores, lint, smog particles, dust mite debris, cough and sneeze debris, bacteria and viruses.

Is this filter sold individually?

No. This product is sold by the case only. Each case contains 4 filters.

Is this filter for residential or commercial HVAC systems?

This product is intended for residential use only. Confirm compatibility with your furnace, air handler or central HVAC system before installation.
