Sold as 1 each. Price is per each.
Minimum order: 10 each. Order increment: 10.

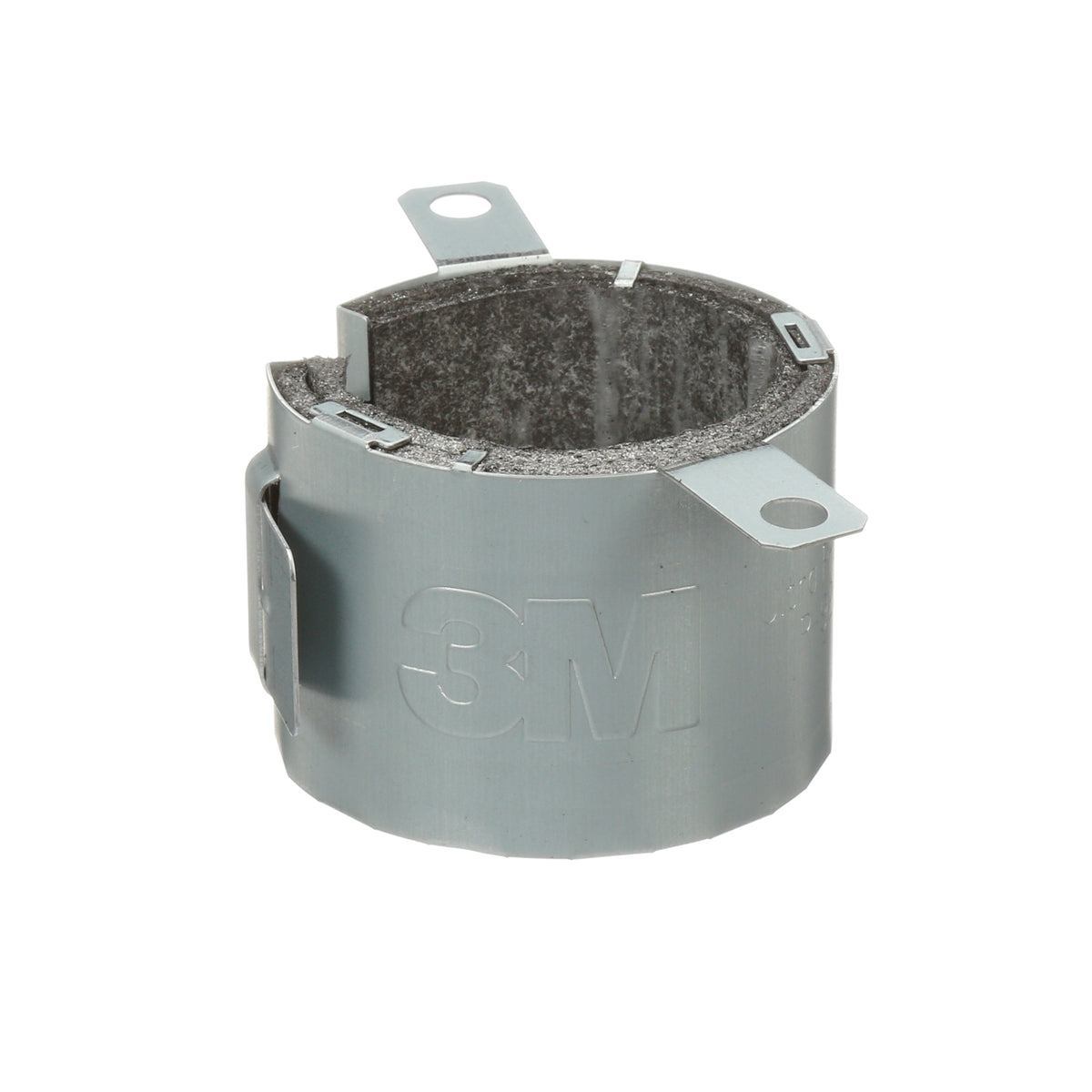

The 3M™ Fire Barrier Ultra Plastic Pipe Device UPPD-1.5 is a one-piece metal collar assembly encasing 3M's heat-expanding 3M™ Fire Barrier Wrap Strip Ultra GS material.
The 3M™ Fire Barrier Plastic Pipe can be used to firestop up to 1-1/2” (38.1 mm) of non-metallic pipe, cables and combos in new and retrofit installations. It achieves up to 3 hours of fire protection in tested and listed systems. This device also mounts easily and quickly (takes about 1 minute) when using 3M™ Ultra Fast Anchors and Pliers (requires 3 anchors, anchors sold separately), no power tools, mounting screws or other fasteners needed. It can also be anchored using conventional methods (e.g. toggle bolts for gypsum or masonry anchors for concrete).
Features
- Embossed 3M™ and red colour is easily identified as a firestop device
- Firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC S115
- Installation takes about one minute (when completed with 3M™ Ultra Fast Anchors)
- One-piece metal construction requires no assembly
- Tabs let installers anchor penetrations to slabs quickly and permanently
Product details
| Brand |
3M |
| Line |
Fire Barrier |
| Catalog number |
UPPD-1.5 |
| 3M stock number |
7100139138 |
| Product type |
Firestop Devices |
| Selling unit |
Each |
| Minimum order |
10 |
| Order increment |
10 |
| Color |
Silver |
| Diameter |
1-1/2 Inch |
| Fire rating |
3 Hour |
Applications
- Used to firestop 1-1/2 inch (38.1 mm) ccPVC, PVC, CPVC, FRPP, PVDF, ccABS and ABS pipes penetrating 1- and 2-hour floor/ceiling assemblies, as well as 1-, 2- and 3 hours of fire-rated gypsum wallboard and fire-rated concrete wall, floor or hollow core assemblies
- May be applied to drain, waste and vent or closed pipe systems
