3M UPPD6 - Fire Barrier Plastic Pipe Device 7100139136
3M UPPD6 fire barrier plastic pipe device used for fire protection in building safety systems.

3M UPPD6 - Fire Barrier Plastic Pipe Device 7100139136

3M SKU: ES FSE UPPD6
/

Sold in multiples of 5 (s)

Shipping calculated at checkout.

Standard
Usually ships in 6 days

  • Secure payments
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

3M Fire Barrier Plastic Pipe Device, PPD6

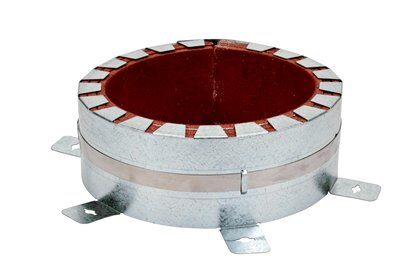

  • The 3M Fire Barrier Plastic Pipe Device is a one-piece metal collar assembly encasing 3M heat-expanding FS-195+ material.

    • Product Information

    Brand 3M
    Part # 7100139136
    Diameter 6 Inch
    Fire Rating 2 Hour
    Heat Resistant Up to 3 hours
    Origin Country USA
    Product Type Fire Barriers

    Product Information

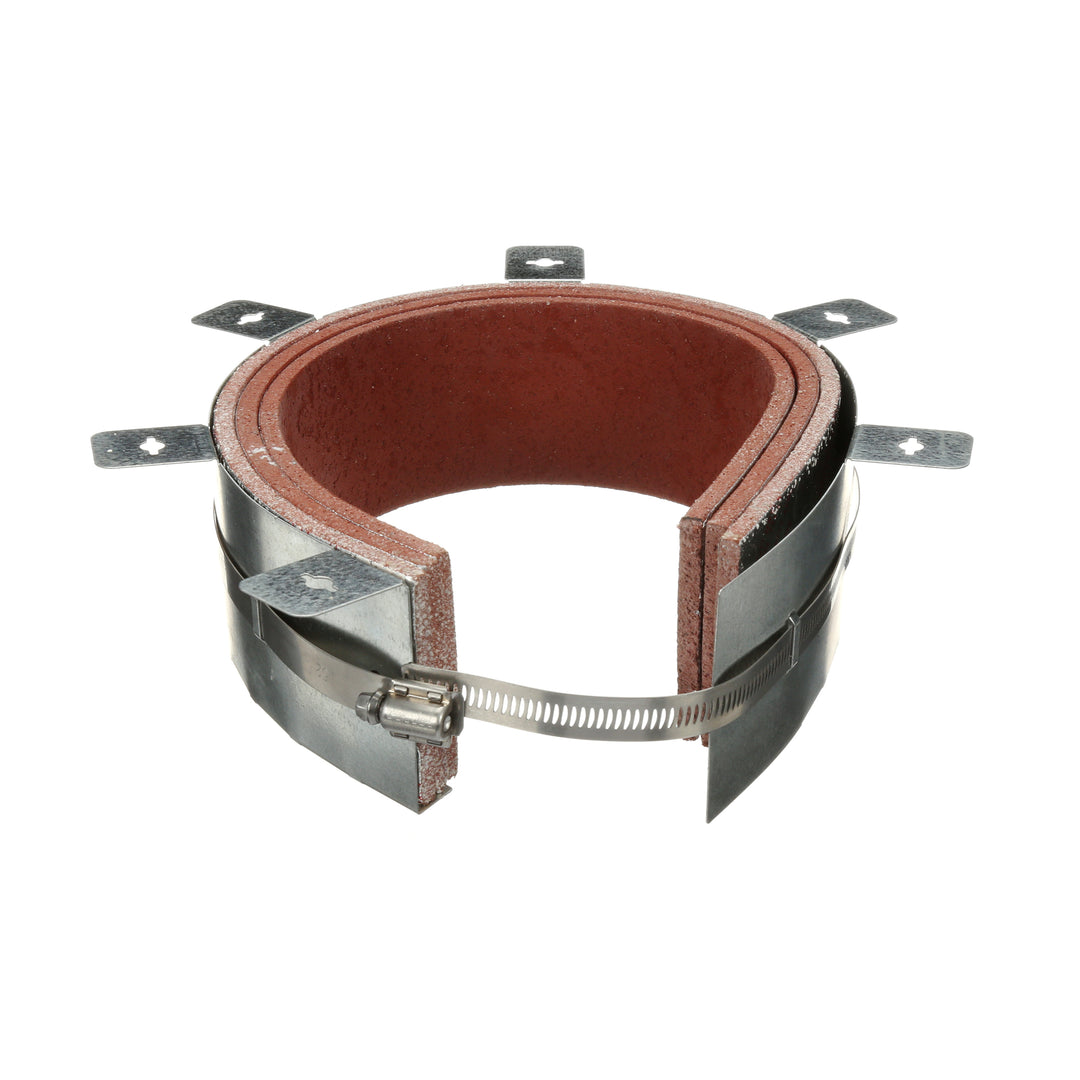

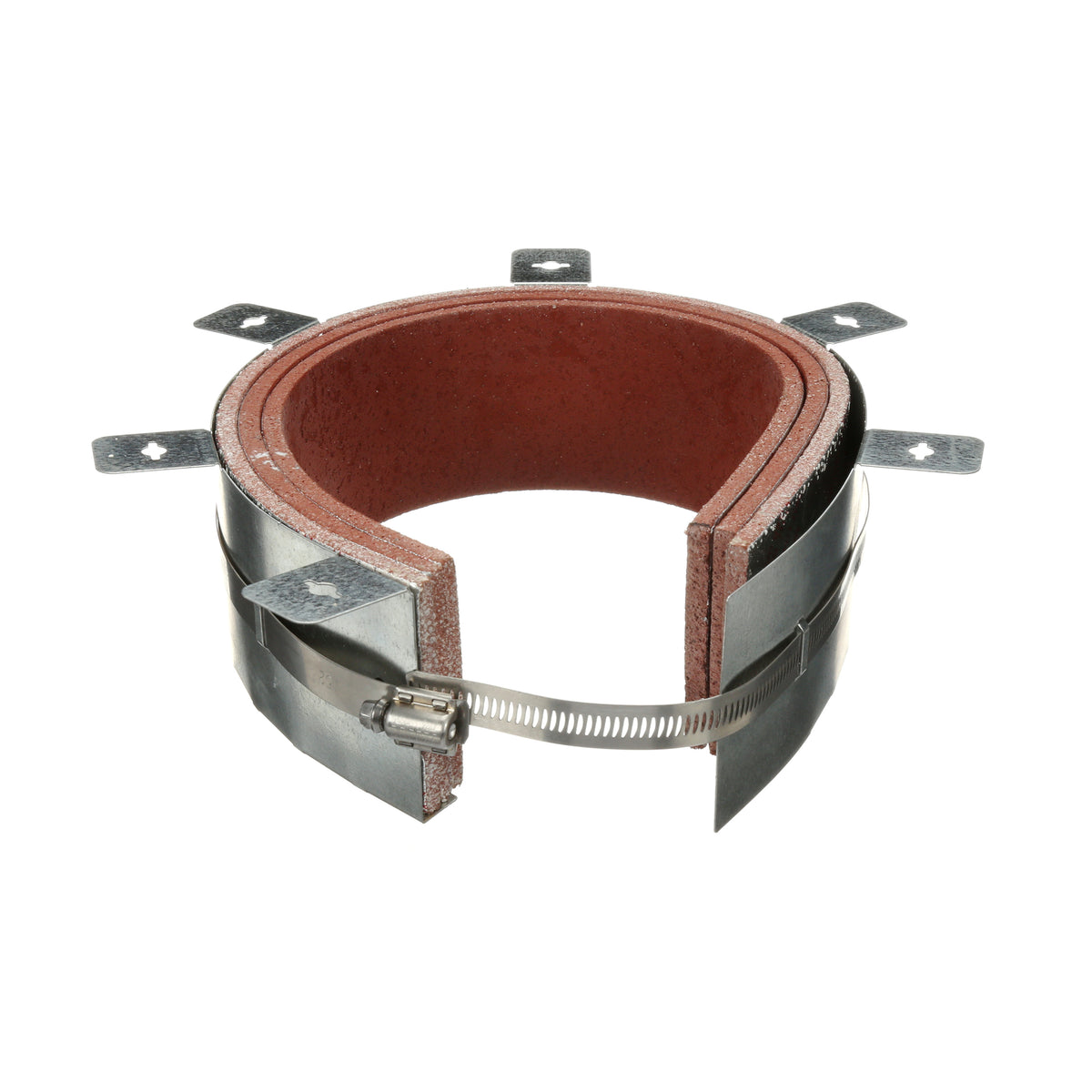

  • Durable one-piece metal collar assembly encasing 3M Fire Barrier Wrap Strip FS-195+ intumescent material (no assembly required)
  • Embossed with trademarked 3M and red colour (easily identified as a firestop device)
  • Firestop tested up to 2 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC S115

    • Suggested Application

  • Used to firestop 6 inch (152.4 mm) PVC, CPVC, FRPP, PVDF, ccABS and ABS pipes penetrating 1- and 2-hour fire-rated gypsum wallboard and fire-rated concrete wall, floor or hollow core assemblies
  • May be applied to drain, waste and vent or closed pipe systems
