Dynabrade 64003 - Superfinisher 230 Volts (Ac) 1 Phase 50 Hz
Dynabrade 64003 - Superfinisher 230 Volts (Ac) 1 Phase 50 Hz - eGrimesDirect

Dynabrade 64003 - Superfinisher 230 Volts (Ac) 1 Phase 50 Hz

Dynabrade SKU: MA COL 64003
/

Sold in multiples of 1 (s)

Shipping calculated at checkout.


This product has a longer than usual lead time

Please contact our customer service team for more details
csr@eGrimesDirect.com

  • Secure payments

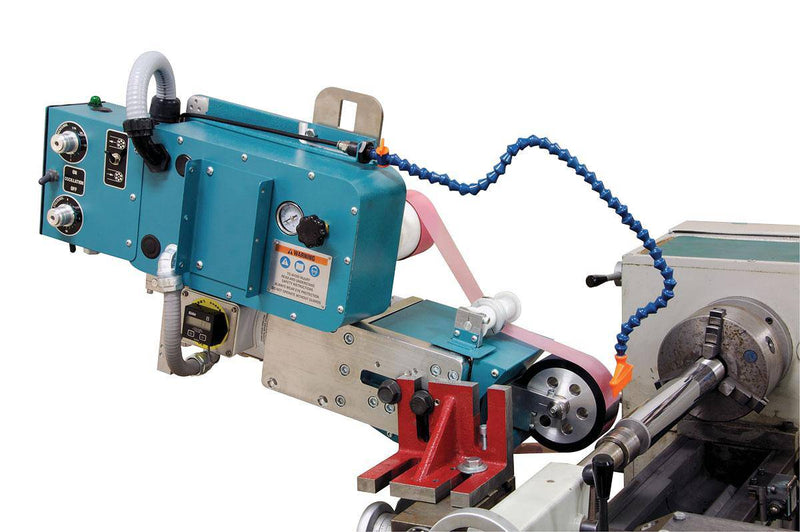

  • SuperFinisher
  • 230 Volts (AC), 1 Phase, 50 Hz
  • Consistently attain repeatable finishes with this versatile new machine
  • With abrasive feed speed adjustable from 1 1/2 Inch (38.1 mm) to 1/16 Inch (1.6 mm) per minute, even diamond abrasives can be fully utilized
  • With changeable contact wheels with widths of 1 Inch (25.4 mm), 2 Inch (50.8 mm), 3 Inch (76.2 mm)or 4 Inch (101.6 mm) and several contact wheel durometers, this machine can cover a wide variety of applications
  • 5 Inch diameter contact wheel allows for up to 2 Inch (50.8 mm) shoulder clearance for getting into tight corners.
  • Machine mounts easily to lathe in less than 5 minutes, using a mounting bracket with a ground face
  • Once the bracket is indicated off the work piece, mounting the Superfinisher puts you very close to final setup
  • The unit and the control box can be built for front or back of the lathe, with an optional 15' (4.5m) pendant for remote mounting
  • The contact wheel oscillation can be adjusted from 15 cycles per second down to 0, giving the operator control over the process.
  • No tools are needed to change abrasive rolls, and this simple procedure can be done very quickly
  • An hour meter allows operator to schedule maintenance
  • The unit has a precision air regulator, giving the operator repeatable control over the contact wheel pressure against the work piece.

    • Product Information

    Brand Dynabrade
    Part # 64003
    Origin Country United States
    Product Type Collectors & Accessories
